Case study

Freeman Shopping Center

1

Overview

Freeman Shopping Center is a family-owned, full-service center in Freeman, South Dakota — a hardware store, a supermarket, a pharmacy, and a franchised restaurant, all under one 21,140 square foot roof. When the owners went looking for a new roof, they asked for quality, efficiency, and affordability, in that order.

2

The challenge

The building was forty-three years old, and its metal panel roof was failing the way metal roofs of that age do. The owner had started chasing leaks through aging edge details, fasteners, and seams. On a warm-up after a cold snap, the underside of the roof would condensate, drip, and stain the ceiling tile below. The closure strips at the roof edge no longer filled the flutes, so water backed up into the building. And the galvanized coating — the panels' only rust protection — had worn thin and heavily oxidized, with rust starting to show in places.

3

What we did

A-1 sprayed a high-density polyurethane foam and a high-tensile acrylic coating directly over the existing metal. That eliminated the tear-off, and with it the risk of exposing the building's contents and services. The foam added R-10, and because it sits at the outermost surface of the roof it moved the condensing surface outside the building — which is what actually ended the ceiling-tile problem, rather than just covering it. The flutes at the roof edges were resealed to stop water backing in. Ten working days, start to finish.

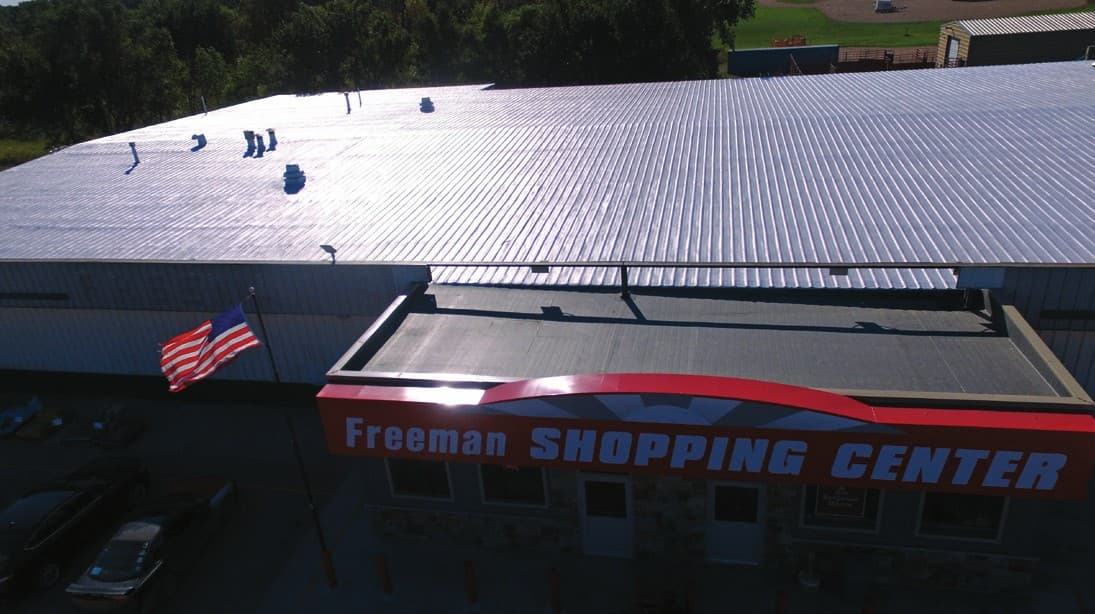

The completed SPF and acrylic roof above the Freeman Shopping Center storefront signage
Completed
The new SPF and coated system over the existing metal roof
4

The result

One monolithic surface now encapsulates the old panels: the metal oxidation halted, the leak paths closed, and no seams left to fail. The system carries a ten-year guarantee against material defects and a projected fifteen-to-eighteen-year life cycle, at which point a wash and re-coat restarts it. A-1 estimates the roof pays for itself on energy savings of thirty percent or more per year.

5

The system

SPFASTM C1029

High-density SPF and acrylic over metal

Foam type
High-density SPF
Insulation added
R-10
Topcoat
High-tensile acrylic
Over
Existing metal panel
Seams
None
Recoat cycle
15–18 yr
Material guarantee
10 yr
6

On site

  • Sprayed directly over the existing metal panel
  • Added R-10 at the outermost roof surface
  • Resealed the flutes at every roof edge
  • No tear-off, no exposure of contents or services

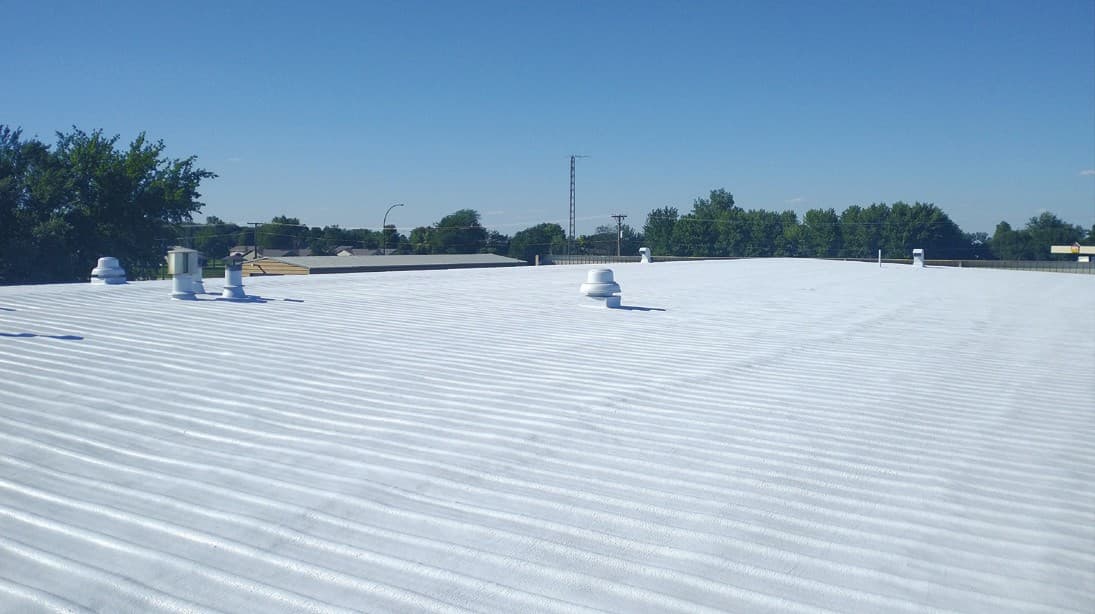

The seamless coated spray foam roof field across Freeman Shopping Center
SPF + acrylic / seamless
